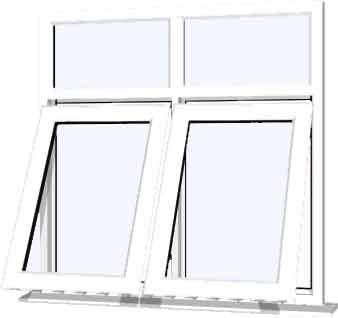

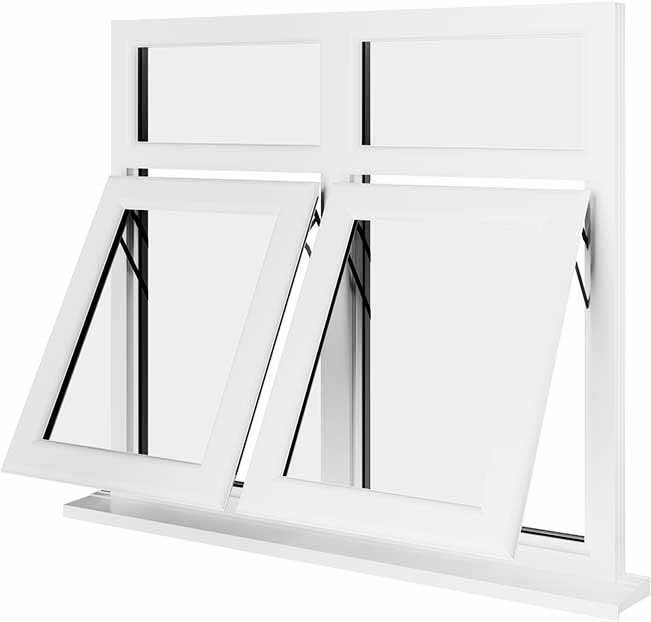

White UPVC Window Style 84

DECEMBER SALE - 10% OFF & FREE DELIVERY ON ALL ORDERS OVER £250
a rated windows
quality upvc windows
fast delivery
cheap upvc windows
house of windows service
house of windows trustpilot
Window Details

Dimensions:

All window frames are made to measure.

  • Sizes stated should be the overall frame size including any cill and frame extensions (if required).
  • All dimensions to be supplied in Metric.
  • All frame styles are viewed from outside.
  • We do not make any fitting allowances on the sizes you provide. The size you state will be the size we manufacture.
Frame Width (mm)

Frame Height (mm)

Sizes stated should be the overall frame size including any cill and frame extensions (if required).

External Cill:

All external cills are 30mm high and will need to be included in the overall height.

85mm stub cill
The stub cill protrudes just 15mm from the external window frame.

85mm stub cill

150mm standard cill
The most common and standard cill size covers most applications. Protrudes 80mm from the external window frame.

150mm cill

180mm cill
If your windows are set further back into the brickwork then you may require the oversized cill which protrudes 110mm from the window frame.

180mm cill

A frame extender allows you to increase the thickness of the window frame. Useful for properties with deep plaster, render or tiles. 10mm, 20mm and 50mm extensions are available.

Remember, if you require any extensions, these need to be included in the overall dimensions.

Frame Extensions (add on's):

Left Top Right
10mm
20mm
50mm
Frame Colours

Please choose a colour:

Windows are available in white, coloured woodgrain effect upvc both sides or coloured woodgrain outside and white inside.

White
White
Oak Both Sides
Oak Both Sides
Oak/White
Oak/White
Rosewood Both Sides
Rosewood Both Sides
Rosewood/White
Rosewood/White
Anthracite Grey Both Sides
Anthracite Grey Both Sides
Anthracite Grey/White
Anthracite Grey/White
Smooth Anthracite Grey/White
Smooth Anthracite Grey/White
Chartwell Green/White
Chartwell Green/White
Cream Both Sides
Cream Both Sides
Cream/White
Cream/White
White-Grain Both Sides
White-Grain Both Sides
Black-Brown Both Sides
Black-Brown Both Sides
Black-Brown/White
Black-Brown/White
Irish Oak Both Sides
Irish Oak Both Sides
Agate Grey/White
Agate Grey/White
Glazing & Energy Rating
Please choose a glass pattern:

Obscure glass patterns available:

Chantilly
Chantilly
Chantilly - Level 2
Flemish
Flemish
Flemish - Level 2
Minster
Minster
Minster - Level 2
Reeded
Reeded
Reeded - Level 2
Sycamore
Sycamore
Sycamore - Level 2
Autumn
Autumn
Autumn - Level 3
Digital
Digital
Digital - Level 3
Taffeta
Taffeta
Taffeta - Level 3
Arctic
Arctic
Arctic - Level 4
Charcoal
Charcoal
Charcoal Sticks - Level 4
Contora
Contora
Contora - Level 4
Florielle
Florielle
Florielle - Level 4
Mayflower
Mayflower
Mayflower - Level 4
Stippolyte
Stippolyte
Stippolyte - Level 4
Oak
Oak
Oak - Level 4
Cotswold
Cotswold
Cotswold - Level 5
Everglade
Everglade
Everglade - Level 5
Pelerine
Pelerine
Pelerine - Level 5
Cassini
Cassini
Cassini - Level 5
Satin
Satin
Satin - Level 5

Window Energy Rating (WER)

WER A
WER A+
Triple Glazing A++

Additional Glass Options:

Toughened glass is upto 5 times as strong as ordinary glass. Toughened safety glass should be fitted in all windows or glazed areas that are lower than 800mm from the floor level.

Laminated glass consists of two pieces of glass containing a sandwich of plastic interlayer. Offering additional protection as the glass cannot be broken into. It's the same glass found in car windscreens and shop fronts.

We offer an array of decorative Georgian Bar designs. The internal bars are fitted within the sealed unit and 18mm thick as standard, available in our extensive range of colours to match the window frame profile.

We offer an array of external Astragal Bar designs. The external bars are fitted to the exterior of the sealed unit with a back to back spacer which creates the affect of individual window panes, available in our extensive range of colours to match the window frame profile.

external astragal bars

We offer 9mm decorative square lead on the external pane of glass.

We offer 9mm decorative diamond lead on the external pane of glass.

Additional Options

Locking window handles are available in white, gold, chrome, satin silver or black and supplied with a key.

White
White
Gold
Gold
Chrome
Chrome
Satin Silver
Satin Silver
Black
Black

As standard, all windows are fitted with stainless steel friction stays allowing the window to stay open in the required position.

  • Fire escape hinges or egress hinges for emergency exit requirements allow the window to open almost 90 degrees. Available on side hung windows only.
  • Restricted window hinges restrict the window opening to a maximum of 100mm to provide child safety. The windows can be opened fully by the press of a button. Available on both side and top hung windows.
  • Easy clean friction stays combine emergency exit requirements with an easy clean feature to access the outside of the window easier. Available for side hung windows only.

Standard

As standard, windows are fitted with dual action espag roller cams providing a high security locking system.

Shootbolt Upgrade

The optional shootbolt locking system provides exceptional security using a combination of steel roller cams and shootbolts and is guaranteed against mechanical failure for 10 years.

PAS24 accredited and Police preferred specification - the highest level of protection against forced entry.

Our shootbolt locking systems are covered by a guarantee of up to £7,500* in the event of a break-in.

sac window shootbolt

PAS24 Enhanced Security Upgrade

In addition to the shootbolt upgrade, the window will be fitted with Elite Stay Guard hinge protectors and screw retainers in the window frame and sash. PAS24 is required for Building Regs Part Q for new builds and extensions. Note, windows in easily accessible locations will also require laminated glass.

elite stay guard protectors

Trickle vents allow you to control ventilation and air circulation, helping to reduce condensation and mould. They provide you with a small amount of fresh air into the building without letting a lot of heat escape.

15th June 2022 Part F (ventilation) Changes

If there are already vents fitted on the original windows, then you can fit the same sized vents on the new windows. For example, 2500mm2 EA vents can be replaced with 2500mm2 EA vents or higher. Just remember that the airflow cannot be decreased.

If the existing windows do not have vents, then the replacement windows must have vents fitted to meet the requirements of the revised Approved Document F. For houses in England, that means a minimum airflow of 8000mm2 EA in habitable rooms and 4000mm2 EA in non-habitable rooms.

All windows for new build properties and extensions are required to have adequate background ventilation whether this is by trickle vents, purge ventilation or extraction.

The installation pack includes a selection of universal frame and glazing packers, large 120mm self tapping frame screws (no rawl plugs required) and self tapping cill screws. Fixing screws for extension pieces will also be supplied if required.

fixing kit
Total Cost
SAVE £ (10% off) Was: £
Now: £ inc VAT & Free Delivery
{{width.validationMessage}}
{{height.validationMessage}}
You can also order by phone - Call 01530 515161
